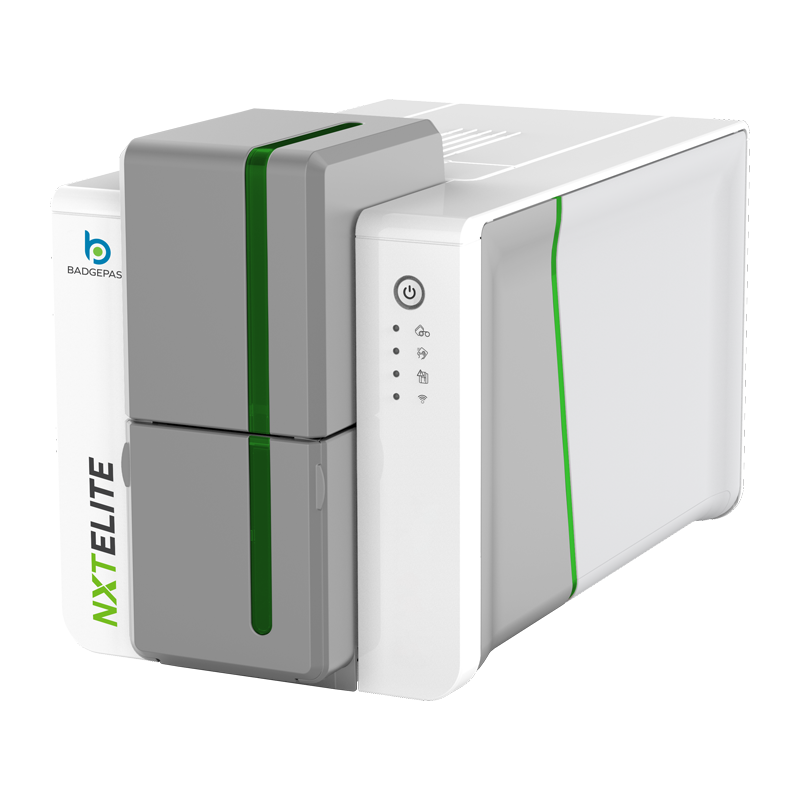

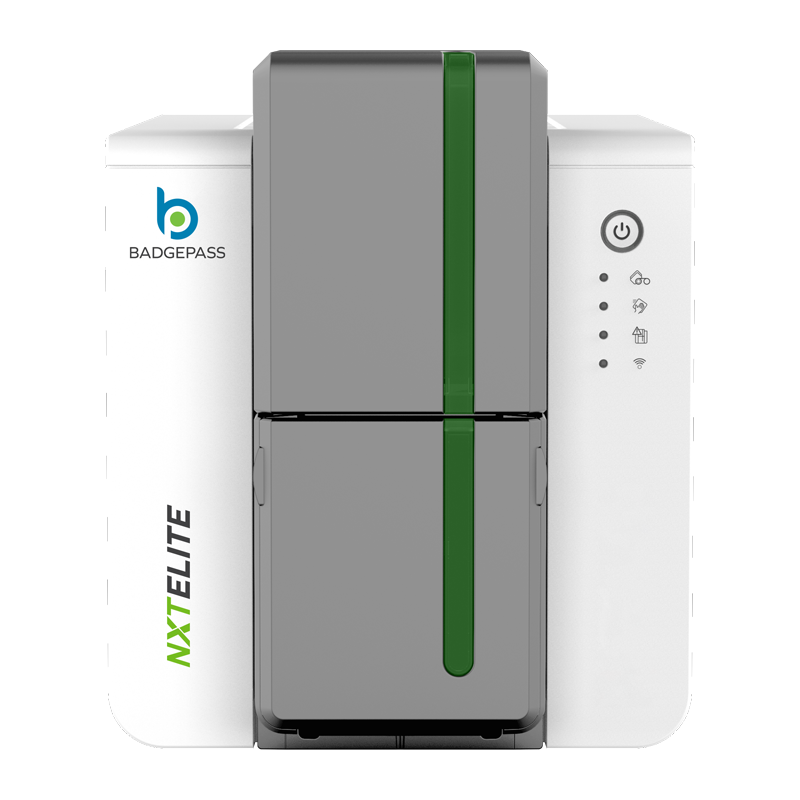

BADGEPASS NXTELITE CARD PRINTER

The NXTElite card printer was designed with performance and print quality in mind! This best-in-class desktop printer features record print speeds up to 280 cards per hour, allowing for maximum output. Even better, there’s no need to sacrifice quality, as the printer boasts 300dpi high resolution printing, resulting in outsanding badge production quality.


BROCHURE REQUEST PRICING DRIVER


Elite ID card printing experience

With one of the fastest print speeds on the market and a high-capacity feeder and hopper, the NXTELITE is the ideal solution for medium and large-volume printing. Durability, combined with a print speed of up to 280 cards per hour, field upgradeable options, and a user-friendly interface, are all features that create an "Elite" printing experience!


    IDEAL FOR:
  • Student IDs
  • Contractor Badges
  • Employee Badges
  • Access Control Cards
  • Membership Cards
  • and more!
KEY FEATURES
Superior Productivity

No need to choose between quantity and quality.

The NXTElite printer gives you both: an output capacity suitable for medium to large runs and high-quality printing. NXTElite and Its record printing speed of up to 280 cards per hour for single-sided printing and 170 cards per hour for single-sided printing, combined with its 100 or 200-card feeder, are the two major assets of the NXTElite that allow it to reach a high level of productivity and autonomy.


Professional Printing

NXTElite printers feature high-resolution printing mode (300dpi) coupled with its colorimetric profile as close to real-life colors as possible allowing you to obtain a high-quality rendering on all your cards.

With all the possibilities it offers, the NXTElite card printer can meet all the needs you have today. And those you have in the future too. How? Thanks to its many features that can easily be added throughout its life: double-sided printing, 200-card feeder, encoders, lamination module, LCD panel. You can install these new options yourself very easily, and from the comfort of your own premises.

TECHNICAL SPECIFICATIONS
General Features
  • Single-sided or dual-sided printing module
  • Edge-to-edge printing
  • Direct-to-card dye-sublimation/Resin thermal transfer

Print Speed

Single Side:

  • Color (YMCKO): 280 Cards per hour
  • Monochrome (K): up to 1000 cards per hour

Dual Side Side:

  • Color (YMCKO-K): 170 Cards per hour

Additional Options
  • Magnetic stripe encoder
  • Contactless smart encoder
  • Proximity encoder
  • Lamination option (single or dual-sided)
  • Upgrade kit for dual-sided printing
  • LCD Color touch-screen display

Connectivity
  • USB (1.0, 1.1, 2.0, 3.0)
  • Ethernet TCP-IP

Safety
  • Print head protection element
  • Data encryption for magnetic coding

Display/User Friendly
  • LED Control Panel
  • Graphical notifications from the printer: cleaning alerts, empty/low-level ribbon, and card alerts, etc.

Card Management
  • Input hopper capacity: 100 cards
  • Output hopper capacity: 100 cards
  • Reject tray capacity: 50 cards
  • Card thickness: 0.25 to 1.25 mm (10 to 50 mil)
  • Manual gauge adjustment
  • Input hopper low card level and empty hopper detection

BadgePass Ribbons
  • YMCKO: 300 yield
  • YMCKO-K: 200 yield
  • K: 2000 yield

Weight

9.06 lbs


Dimensions
  • Width = 8.07"
  • Height = 9.72"
  • Weight = 9.06 lbs"
  • Length = 14.99"

Warranty

3 Year (36 months) standard
